If you are choosing an orbital welding machine, one of the biggest decisions is selecting between an open orbital welding head and a closed orbital welding head.

Both welding heads are widely used in orbital welding systems, but they serve different applications, materials, and welding requirements. The wrong choice can mean rejected welds, wasted time, and frustrated operators.

This guide explains the differences, advantages, disadvantages, and ideal applications to help manufacturers choose the right solution for their orbital pipe welding needs.

We’ve been building both types of orbital welding heads since 1994. We’ve shipped to over fifty countries. We’ve watched customers succeed with open orbital welding head systems on pipeline projects and struggle with them on sanitary tubing. And we’ve seen closed orbital welding head units save high-purity jobs – and get in the way on heavy-wall carbon steel.

Here’s what you need to know.

What Is an Open Orbital Welding Head?

An open orbital welding head clamps around the outside of the pipe. The welding torch travels along a track that wraps the circumference. The weld zone is exposed to the surrounding air – which is fine for many orbital pipe welding applications but problematic for others.

Key Characteristics

• Fast setup – clamp, align, and start welding. No sealing. No purge chamber to assemble.

• Wide diameter range – typically covers 1/2 inch to 8 inches or more.

• Wire feed capability – can add filler material, making it suitable for multi-pass welding.

• Field-friendly – no fragile seals or complex gas plumbing. Works outdoors in deserts, jungles, and Arctic conditions.

• Exposed arc – allows visual monitoring but requires more shielding gas to compensate.

When to Use an Open Orbital Welding Head

Choose an open orbital welding head when:

• Welding thick-wall pipe (schedule 40 and above) – carbon steel or stainless steel

• Working in the field – pipeline construction, shipyards, outdoor sites

• Needing wire feed – for multi-pass or thick-section orbital pipe welding

• Welding large diameters – open heads can cover pipe diameters up to 270 mm (about 10.6 inches)

• Requiring flexibility – handles varying pipe sizes with quick adjustments

Limitations

The open orbital welding head struggles on thin-wall stainless steel – schedule 10 or thinner. The exposed weld zone allows oxygen to reach the root, causing sugaring, oxidation, and loss of corrosion resistance. For high-purity applications like pharmaceutical lines, semiconductor gas systems, and food processing, the open orbital welding head is usually the wrong choice.

What Is a Closed Orbital Welding Head?

A closed orbital welding head encloses the entire weld zone inside a sealed chamber. The torch rotates inside that chamber. Inert gas floods the chamber before and during welding. The weld is completely isolated from the surrounding atmosphere.

Key Characteristics

• Perfect gas coverage – 100% argon, oxygen-free environment inside the closed orbital welding head

• No oxidation – prevents sugaring and contamination

• Compact design – takes less radial clearance than most open heads

• Autogenous welding – typically fusion welding without filler wire

• Water cooling available – for high-duty-cycle applications

When to Use a Closed Orbital Welding Head

Choose a closed orbital welding head when:

• Welding thin-wall stainless – schedule 10 or thinner, wall thickness up to 2.3 mm

• High-purity applications – pharmaceutical, semiconductor, aerospace, food processing

• Tight spaces – compact design fits where open heads won't

• Small diameters – typically 1/4 inch to 6 inches

• Materials sensitive to oxidation – stainless steel, titanium, zirconium

Limitations

The closed orbital welding head is slower to set up – sealing and purging take time. It's typically limited to smaller diameters (up to about 4-6 inches). And it's not designed for wire-fed, multi-pass welding on thick-wall pipe.

Open vs Closed: Side-by-Side Comparison

How to Choose the Right Orbital Welding Head

The decision between an open orbital welding head and a closed orbital welding head comes down to three factors:

1. Material and Wall Thickness

Thin-wall stainless (schedule 10 or thinner) → closed orbital welding head. Oxidation will ruin the weld.

Thick-wall carbon steel or stainless (schedule 40+) → open orbital welding head. Speed and wire feed capability matter more.

2. Environment

Field work (pipelines, construction, shipyards) → open orbital welding head. Simpler, more rugged, no seals to fail.

Shop work, cleanrooms, controlled environments → either, but closed orbital welding head if high-purity is required.

3. Production Requirements

High volume, multiple diameters, wire-fed multi-pass → open orbital welding head. Flexibility and speed.

High purity, thin-wall, fusion welding, traceability → closed orbital welding head. Quality and consistency.


Can One Orbital Welding Machine Use Both?

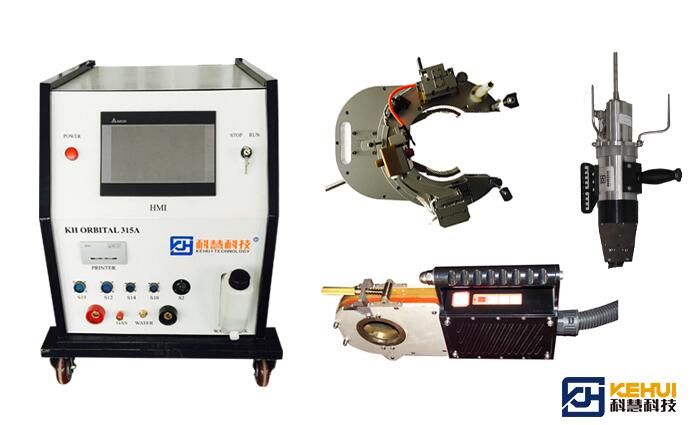

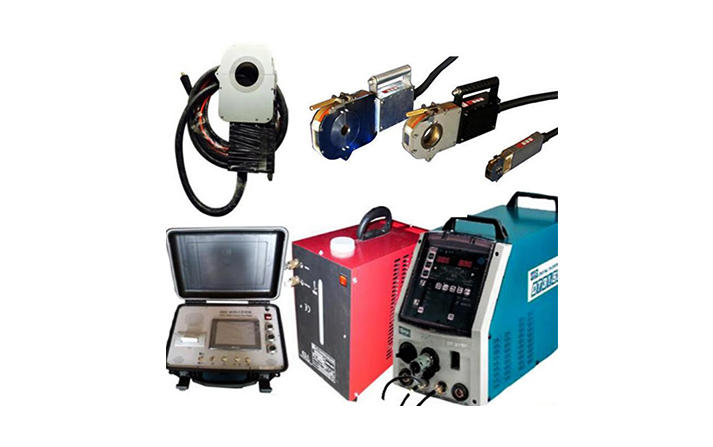

Yes. Some orbital welding machine systems, like our KH-315A 3-in-1, allow you to swap between an open orbital welding head and a closed orbital welding head on the same power source. This gives you the versatility to handle both thick-wall pipe welding and high-purity thin-wall work without buying two complete systems.


What We Build

We manufacture both types of orbital welding heads:

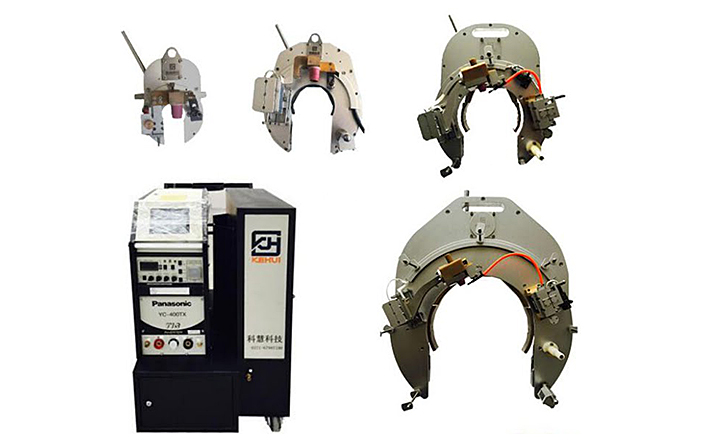

• KHGK – Our open orbital welding head. For pipeline, process piping, carbon steel, and stainless above schedule 10. Fast setup, wide diameter range, field-ready.

• KHGC – Our closed orbital welding head. For thin-wall stainless, sanitary tubing, pharmaceutical, and semiconductor. Perfect gas coverage, no oxidation, repeatable results.

• KH-315A – 3-in-1 system with interchangeable open orbital welding head and closed orbital welding head heads on one power source.

Every orbital welding machine we sell includes engineer-led training at your site – anywhere in the world. We cover travel and training time. We also provide 24/7 phone support from people who build these machines.


FAQ

Question 1: Which orbital welding head is best for thin-wall tubing?

A closed orbital welding head is best for thin-wall tubing (schedule 10 and below). The sealed chamber prevents oxidation, which is critical for stainless steel and high-purity applications.


Question 2: Which welding head is recommended for thick-wall pipes?

An open orbital welding head is recommended for thick-wall pipes (schedule 40 and above). It allows wire feed for multi-pass welding, sets up faster, and handles larger diameters.

Question 3: Can one orbital welding machine use both open and closed welding heads?

Yes. Systems like our KH-315A allow you to swap between an open orbital welding head and a closed orbital welding head on the same power source. This gives you versatility for mixed applications.

Question 4: What pipe diameters can closed orbital welding heads handle?

Closed orbital welding heads typically handle diameters from 1/4 inch to 6 inches (about 6 mm to 114 mm). For larger diameters, an open orbital welding head is usually required.

Question 5: How do I choose the right orbital welding head for my application?

Start with your material and wall thickness:

• Thin-wall stainless or high-purity → closed orbital welding head

• Thick-wall carbon steel, field work, or large diameters → open orbital welding head

• Mixed work → consider a system that supports both heads

Then consider your environment (field vs shop), production volume, and whether you need wire feed capability.


The Bottom Line

Choosing between an open orbital welding head and a closed orbital welding head isn't about which is “better.” It's about which fits your material, your environment, and your production needs.

• Thin-wall stainless + high purity = closed orbital welding head

• Thick-wall carbon steel + field work = open orbital welding head

• Mixed work = both heads (KH-315A)

We've been building both types of orbital welding heads since 1994. We've helped customers in over fifty countries make this choice. We can help you too.

If you're not sure which orbital welding head is right for your orbital pipe welding operation, call us. Tell us what you weld, what wall thickness, what environment. We'll recommend the right solution – and if we're not the right fit, we'll tell you that too. Because after thirty-one years, we've learned that the best orbital welding machine isn't the one with the most features – it's the one that solves your problem without creating new ones.
