Pipeline welding rarely takes place under ideal workshop conditions. Pipes may be installed outdoors, moved across long distances, or welded on uneven ground. Wind, dust, limited power, and difficult access can all affect production.

An automatic welding machine for pipeline helps control welding travel and process parameters, improving consistency during repeated pipe welding. However, successful pipeline field welding still depends on proper joint preparation, equipment setup, and operator control.

This article explains the main challenges of pipeline field welding and how automatic pipe welding solutions can support more efficient and repeatable pipeline construction.





Why Pipeline Field Welding Is Different

Factory welding normally takes place in a controlled environment. Pipes can be positioned accurately, equipment remains in one location, and environmental conditions are easier to manage.

By comparison, pipeline field welding may involve:

• Uneven working areas
• Wind, dust, rain, and temperature changes
• Limited power supply
• Difficult pipe alignment
• Frequent equipment movement
• Restricted access around the pipe

For this reason, an automatic welding machine for pipeline must provide not only stable welding performance but also practical mobility and adaptability.





Major Challenges in Pipeline Field Welding

1. Changing Weather and Site Conditions

Wind can reduce shielding gas protection, while dust and moisture may contaminate the welding area.

Before pipeline field welding, operators should check:

• Pipe surface cleanliness
• Weather protection
• Shielding gas stability
• Equipment protection
• Safe cable routing

An automatic welding machine for pipeline can control programmed parameters, but it cannot correct poor site preparation.

2. Pipe Alignment and Joint Fit-Up

Poor alignment can lead to inconsistent root conditions and increased rework.

Before automatic girth welding, confirm:

• Pipe alignment
• Root gap
• Bevel geometry
• Joint cleanliness
• Stable clamping

An orbital pipe welder can provide controlled movement around the pipe, but accurate fit-up is still essential.

3. Equipment Mobility

Pipeline projects often require equipment to move from one joint to another.

A practical automatic welding machine for pipeline should consider:

• Equipment size
• Transport requirements
• Cable length
• Setup time
• Power availability

Modular automatic pipe welding solutions can help reduce repeated setup work and improve efficiency on long-distance projects.

4. Maintaining Welding Consistency

Manual weld quality may vary between operators and shifts. An orbital pipe welder can control parameters such as:

• Welding current
• Travel speed
• Wire feed speed
• Welding sequence
• Heat input

This helps support more repeatable welding, although programs may still need adjustment for different materials, wall thicknesses, and joint designs.





How Automatic Pipe Welding Solutions Support Field Projects

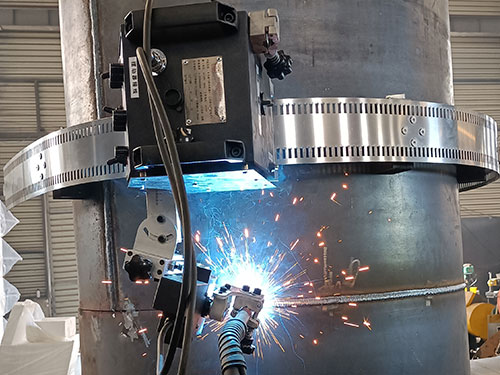

Controlled Travel for Automatic Girth Welding

During automatic girth welding, controlled travel speed can help maintain:

• More uniform weld beads
• Stable heat input
• Better weld repeatability
• Reduced operator variation

An automatic welding machine for pipeline allows the system to perform a programmed cycle while the operator monitors the process.

Repeatable Welding Programs

Pipeline projects often include many similar joints. An orbital pipe welder can repeat qualified welding programs and reduce setup variation.

For projects with repeated pipe sizes, this is one of the main advantages of automatic pipe welding solutions.

Improved Process Control

Automation does not remove the need for skilled operators. Instead, operators can focus more on:

• Pipe preparation
• Equipment setup
• Program selection
• Process monitoring
• Weld inspection

Field Welding Challenges and Solutions

This shows why successful pipeline field welding depends on both suitable equipment and disciplined site preparation.



Selecting Equipment for Different Pipeline Conditions

Small and Medium-Diameter Pipelines

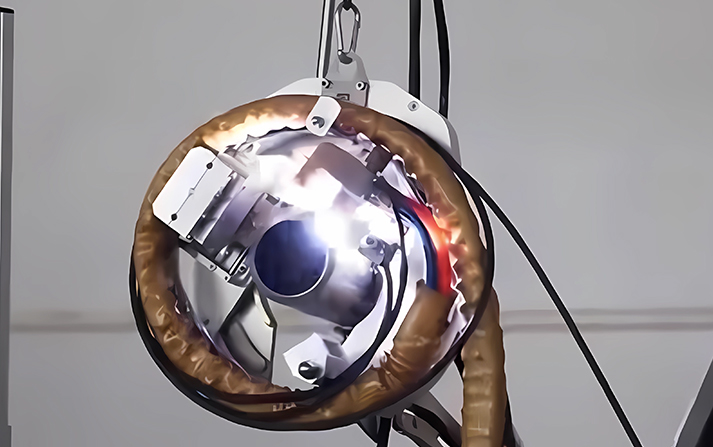

An orbital pipe welder may be suitable when the pipe diameter, joint design, and access conditions allow controlled welding around the pipe.

Important factors include:

• Pipe outside diameter
• Wall thickness
• Material
• Joint accessibility
• Required weld quality

Large-Diameter Pipelines

Large pipelines may require external welding systems, welding carriages, or track-based equipment.

In these applications, automatic girth welding may use:

• External travel mechanisms
• Adjustable welding tracks
• Multi-pass welding procedures
• Controlled circumferential movement

The best automatic welding machine for pipeline should be selected according to the complete project requirements, not pipe diameter alone.



Working With a China Pipeline Welding Machine Manufacturer

Buyers increasingly compare international brands with China pipeline welding machine manufacturers.

When evaluating a supplier, consider:

• Manufacturing experience
• Pipeline application knowledge
• Customization capability
• Technical support
• Spare parts availability
• Installation and operator training

A reliable China pipeline welding machine manufacturer should understand the actual project and recommend equipment based on pipe size, material, wall thickness, joint design, welding process, and field conditions.

For customized automatic pipe welding solutions, detailed project information helps the manufacturer provide a more suitable configuration.



Field Preparation Checklist

Before starting the welding cycle, confirm:

Pipe and Joint

• Pipe material is confirmed
• Pipe ends are clean
• Joint geometry is correct
• Root gap is controlled
• Alignment is stable

Equipment

• The automatic welding machine for pipeline is securely positioned
• Cables and gas hoses are connected
• The welding program matches the application
• The orbital pipe welder moves smoothly

Working Environment

• The welding area is protected from excessive wind and contamination
• Power is stable
• Equipment is protected from rain and dust
• Operators can safely access the work area

Final Takeaway

An automatic welding machine for pipeline can improve field welding by providing controlled travel, repeatable programs, and more stable process parameters.

However, reliable pipeline field welding still requires accurate pipe fit-up, clean joints, suitable environmental protection, and trained operators.

For repeated pipeline joints, an orbital pipe welder and other automatic pipe welding solutions can improve consistency and reduce unnecessary variation. For large projects, automatic girth welding systems may support more efficient pipeline construction.



FAQ

Question 1: What is an automatic welding machine for pipeline used for?

An automatic welding machine for pipeline controls part or all of the welding process. Depending on the system, it may control welding travel, welding parameters, wire feeding, or the complete automatic girth welding cycle.


Question 2: Can an orbital pipe welder be used for pipeline field welding?

Yes. An orbital pipe welder can be used for pipeline field welding when the pipe size, joint design, access conditions, and welding process are suitable.


Question 3: What are the main challenges of pipeline field welding?

Common challenges include wind, dust, moisture, uneven ground, limited power, difficult pipe alignment, and frequent equipment movement.


Question 4: How does automatic girth welding improve productivity?

Automatic girth welding provides controlled travel and repeatable welding programs. This can improve weld consistency and reduce variation during repeated pipeline construction work.


Question 5: What information is needed to select automatic pipe welding solutions?

Buyers should provide pipe diameter, wall thickness, material, joint type, welding process, production requirements, project location, and field conditions.


Question 6: Can a China pipeline welding machine manufacturer provide customized equipment?

Many China pipeline welding machine manufacturers provide customized configurations. Buyers should confirm manufacturing experience, engineering capability, technical support, training, and after-sales service.


Question 7: Does an automatic welding machine eliminate the need for skilled operators?

No. An automatic welding machine for pipeline reduces manual welding movement, but trained operators are still required for joint preparation, equipment setup, process monitoring, and weld inspection.
