Tote Washing and Cleaning Systems for Reusable Containers

The tote washing and cleaning systems for reusable containers are highly adaptable solutions, configurable from manually operated units to fully automated lines based on specific operational needs. In addition to IBC totes, these systems effectively clean stainless steel liquid carriers and industrial product containers used across logistics and manufacturing sectors. Each tote washing and cleaning systems for reusable containers integrates recirculation cleaning technology with adjustable temperature, pressure, detergent type, and cycle duration, with optimal configurations determined in consultation with Kehui. The system can be delivered as an automated cleaning production line or a complete enclosed cleaning booth, serving industries such as chemicals, pharmaceuticals, food processing, and particularly new energy (e.g., LiPF₆ and electrolyte drum cleaning).

Video
Advantages

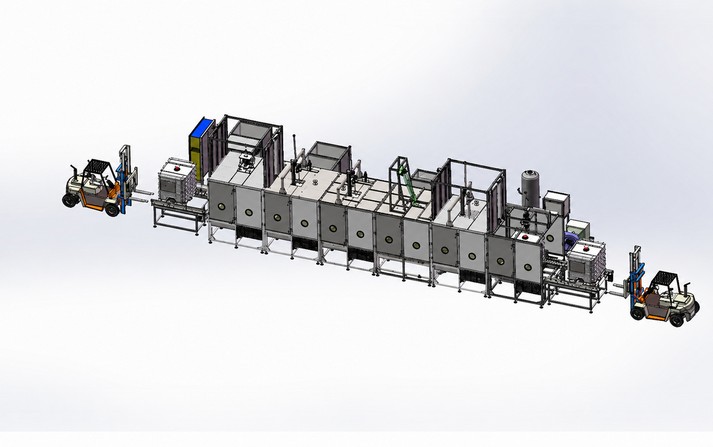

Layout
Core Technology
Plant Components
Successful Case
Inquiry Online

Advantages

Product highlights of tote washing and cleaning systems for reusable containers:

Flexible automation level – from manual to fully automatic, matching any production scale
Significant labor reduction – replaces manual cleaning, lowers labor intensity and hiring difficulty
Fast cleaning cycle – averages 2–4 minutes per IBC tote, improving throughput
Improved workplace safety – enclosed operation minimizes chemical exposure risks
Pressure versatility – operates from 5 to 500 bar, handling light rinsing to heavy residue removal
Quick return on investment – resolves cleaning workforce shortages while boosting efficiency

Core Technology

Core technologies for tote washing and cleaning systems for reusable containers:

The system features a precision 360° 3D rotary jet cleaning head that delivers high impact force with low liquid consumption (15–200 L/min). Available drive options include electric, pneumatic, and water-driven types, with spray angles ranging from 180° to 360°. Operating pressure can be adjusted between 5 and 500 bar to suit various residue conditions. Exterior cleaning is supported either manually or automatically at similar pressure levels. This combination ensures thorough interior and exterior cleaning, achieving 100% coverage even for stubborn or dried-on residues.

Plant Components

Production line structure for tote washing and cleaning systems for reusable containers:

Rotary jet cleaning head – multiple models covering different spray angles and drive mechanisms
Mobile pump station – integrated pressure gauge and filter for recirculation-based cleaning
High-pressure hose and piping – corrosion-resistant material for chemical compatibility
Pneumatic lifting mechanism – enables manual or automated insertion of the cleaning head into containers
Control panel – touchscreen interface for setting pressure, temperature, detergent, and cycle time
Optional cleaning booth – fully enclosed structure for turnkey installation and emission control
