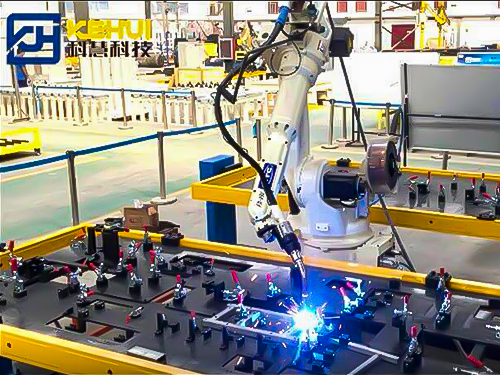

Medical-bed Robotic Welding System
With MIG, MAG, CO2, or TIG welding method, mainly 2 kinds based on the welding objects: 1. big size of one side welding requirement, such as different kinds of bed frames; 2. small size of one or both sides.

Application:

For bicycle frames, motorcycle frames, fence, agricultural machinery, engineering machinery, furniture, auto parts, car seats, medical equipment, hardware and electrical machinery, and etc.

Parameter:

Welding speed: 5~50mm/s;
positional repeatability of robot: ±0.1mm;
positional repeatability of positioner: ±0.3mm.
Advantage
1.Simple configuration & flexible layout:
Layout designed depends on actual condition, which effectively avoids the fixtures’ interference situation; double-station configuration, rotating positioner and fixture  stabilizes and ensures high-quality welding effect.

2.Big amount production even with tough welding condition:
The rotating positioner and the changing of welding torch position can greatly ensure the accessibility and status of welding torch, no matter how irregular the welding gap is.
























3.High production efficiency:
Two-shift system: less waiting time for robot when worker load and unload workpieces, improving its using efficiency producing efficiency, 8 hours per shift. Aldo it can work 24-hour continuously with 3 shifts.

4.Customized layout:
Depending on customers’ requirement, the system can use different brand of robot, power source and others units.

















5.Less investment cost: Its flexibility shorten upgrading preparation period, saving a lot investment on equipment in the near future.
Structure

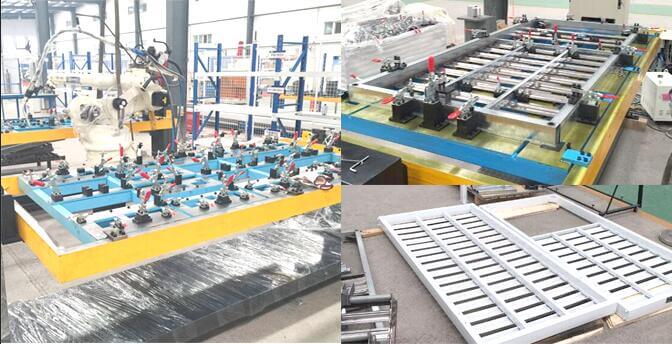

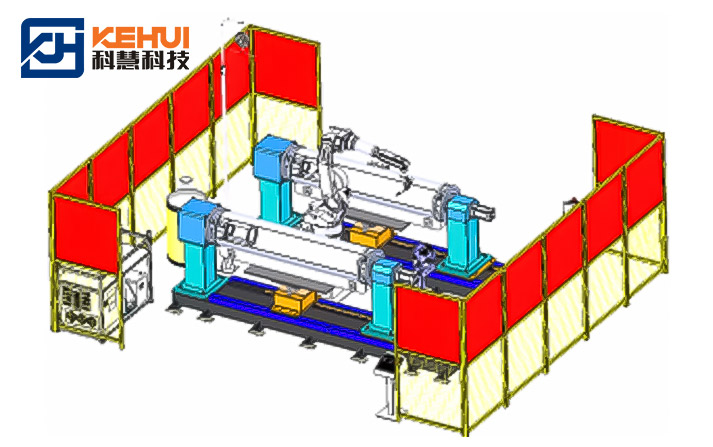

a) The bed frames welding station realizes the max.system efficiency with layout of one worker-two stations design. Worker can load fixtures and unload workpieces at the other station while one station is welding.

b) The bed legs welding station realizes the max.system efficiency with layout of one worker-3 stations design. Worker can load fixtures and unload workpieces at the other station while one station is welding.
Parameter
No. Items Parameters
1 Size of workpiece Can be designed according to size of workpieces
2 Weight of workpiece Can be designed according to requirement
3 Welding speed Normally 5~50mm/s, can be set by weld size
4 Positional repeatability of robot ±0.1mm
5 Positional repeatability of moving structure ±0.15mm
6 Positional repeatability of positioner ±0.3
Video

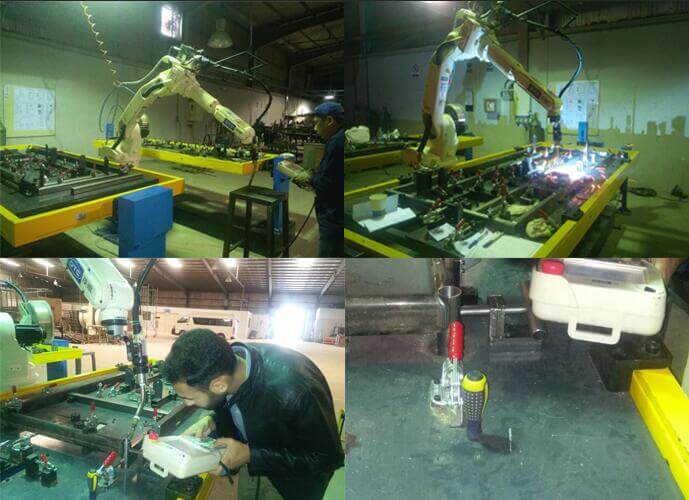

Cases
