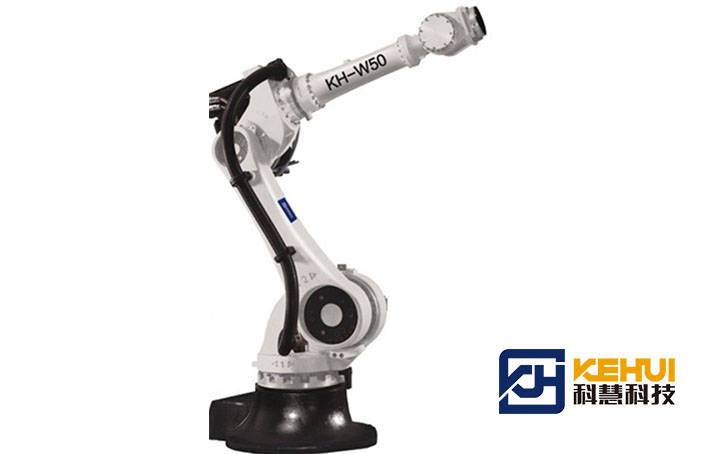

KH-W50 6-axis robot for material handling, palletizing, assembly and casting
With compact structure, KH-W50 robots are equipped with high—precision reducer, allowing the rotating arm can work flexibly within limited space with high speed, suitable for welding,handling, palletizing, assembly etc. In addition, N50 robots can be mounted flexibly.

Application:

Welding Medium payload application Materials handing Palletizing Assembling Casting polishing

Parameter:

Model: KH-W50 Wrist Payload: 50kg Max Working Radius: 2124
info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage
  1. Large working space
  2. Stable performance
  3. High running speed
  4. Highly optimized for general use
  5. Modular mechanical structure design
Structure
Parameter
Model KH-W50
Wrist Payload 50kg
Max Working Radius 2124mm
DOF 6





Max Speed		 J1 140° Is
J2 120° /s
J3 120° /s
J4 220° /s
J5 220° /s
J6 320° /s





Max Operation Area		 J1 ±165°
J2 +130°--60°
J3 +75°--195°
J4 ±360°
J5 ±120°
J6 ±360°
Weight 510 kg
Position Repeat Accuracy ±0.25 mm
Working Temperature 0~40°C
Video
