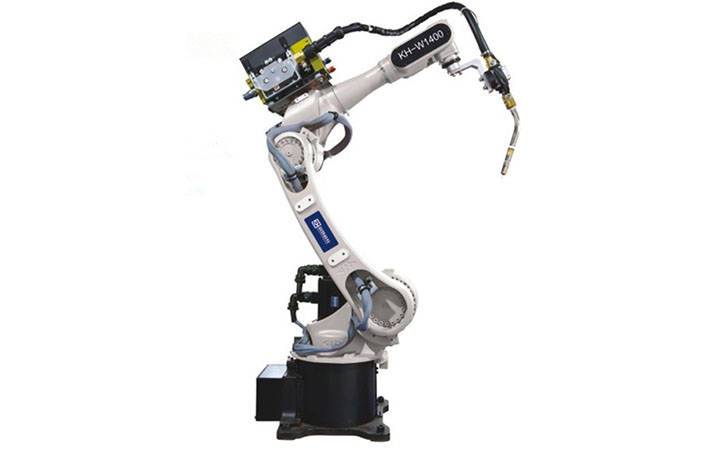

KH-W1400 Industrial Automatic Welding Robot
KH-W1400 Series robots are compact, small and lightweight, ideal for welding application due to its high stability to finish welding job. It can realize high welding—path accuracy, considerably reduce welding cycle—time, and extend the lifetime of tubes and addition.

Application:

Materials handing Palletizing Arc welding Cutting welding

Parameter:

Model: KH-W1400 Wrist Payload: 6kg Max Working Radius: 1405mm
info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage
  1. Small size
  2. Light weight
  3. High running speed
  4. High position repeat accuracy
  5. Good welding reliability
Structure


Parameter
Model KH-W1400
Wrist Payload 6kg
Max Working Radius 1405mm
DOF 6





Max Speed		 J1 150° Is
J2 150° /s
J3 160° /s
J4 360° /s
J5 320° /s
J6 360° /s





Max Operation Area		 J1 ±165°
J2 +155°-- -90°
J3 +70°-- -200°
J4 ±170°
J5 ±120°
J6 ±360°

The Max Moment Allowable Torque		 J5 54Nm
J6 23 Nm
Weight 143 kg
Position Repeat Accuracy ±0.05 mm
Working Temperature 0~40°C
