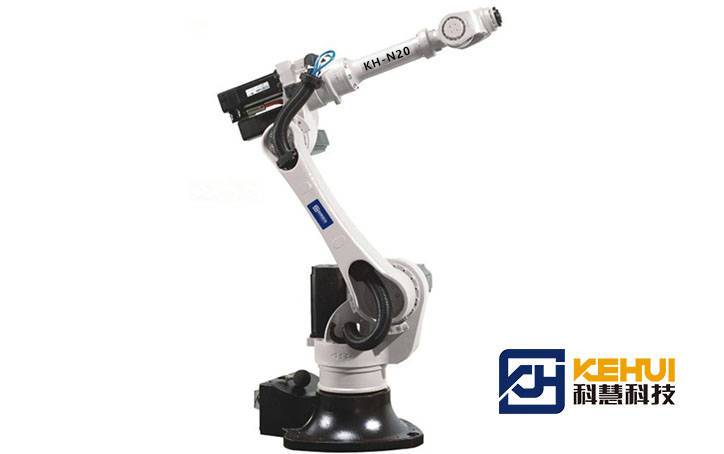

KH-N20 6-axis robot for material handling, assembly and casting polishing
With compact structure, KH-N20 series robots are equipped with high-precision reducer, allowing the rotating arm can work flexibly within limited space with high speed.

Application:

Materials handing Palletizing Assembling Casting polishing welding

Parameter:

Model: KH-N20 Wrist Payload: 20kg Max Working Radius: 1588mm
info@zzkehui.com
Inquiry Online
+8615633683072
Request Quotation
Advantage
Big working space
High position repeat accuracy
Stable performance
High running speed
Highly optimized for general use
Modular mechanical structure design

Structure
Parameter
Model KH-N20
Wrist Payload 20kg
Max Working Radius 1588mm
DOF 6





Max Speed		 J1 150° Is
J2 120° /s
J3 120° /s
J4 360° /s
J5 300° /s
J6 450° /s





Max Operation Area		 J1 ±165°
J2 +130°——65°
J3 +75°--190°
J4 ±360°
J5 ±120°
J6 ±360°

The Max Moment Allowable Torque		 J5 186 Nm
J6 98 Nm
Weight 246 kg
Position Repeat Accuracy ±0.05 mm
Working Temperature 0~40°C
