Industrial boilers don’t forgive sloppy welding. Steam pressure, thermal cycling, and vibration all converge at one fragile location—the tube to tubesheet joint. If that ring of metal fails, efficiency drops, leaks start, and shutdowns follow.

That’s exactly why boiler factories are replacing manual welding with an automatic tube to tubesheet welding machine designed specifically for high-volume boiler tube sheets.

As a manufacturer of automated welding systems, we see this transition every day.




Why Boiler Manufacturing Needs Automation

Boiler tube sheets are dense. Hundreds or thousands of tubes packed into limited space create tight welding angles and inconsistent access.

Manual welding in such conditions often leads to:

• Uneven penetration

• Overheated tube edges

• Inconsistent bead geometry

• Difficult inspection results

A precision automatic tube to tubesheet welding machine stabilizes arc length and rotation speed, ensuring every tube to tubesheet joint receives identical heat input.

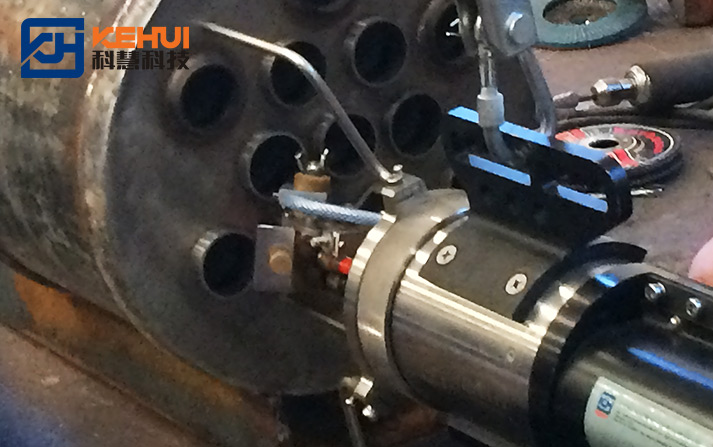

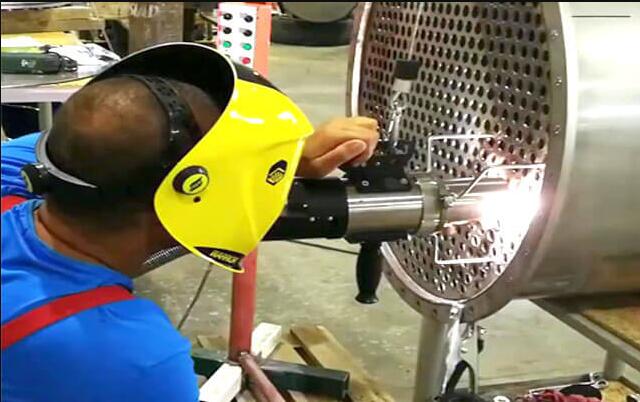

This is where orbital welding tube to tubesheet technology becomes essential. By rotating the torch around a fixed tube, the weld path stays perfectly circular even in cramped boiler tube sheets.




Orbital welding tube to tubesheet in Boiler Production

In boiler fabrication, repeatability matters more than speed. Each tube to tubesheet joint must survive years of pressure pulses and thermal expansion.

Using orbital welding tube to tubesheet, engineers can precisely control:

• Weld penetration depth

• Heat-affected zone width

• Rotation speed profile

• Arc stability

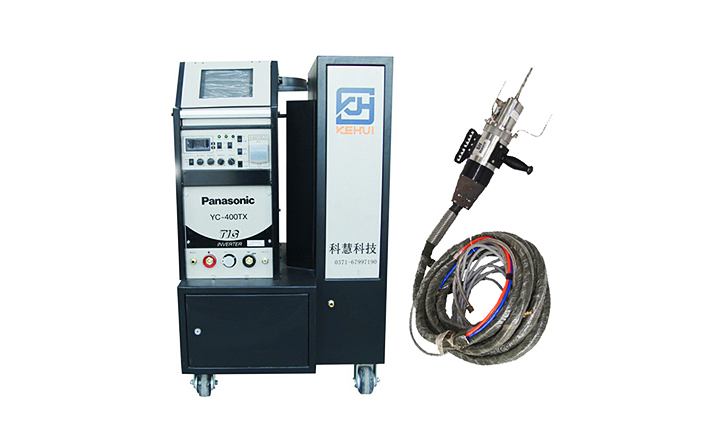

A modern tube to tubesheet orbital welding machine stores welding parameters, so tube #1 and tube #2000 look identical under inspection.

That consistency is impossible with manual methods.




Engineering Benefits of an automatic tube to tubesheet welding machine

When boiler manufacturers adopt an automatic tube to tubesheet welding machine, several improvements appear immediately:

1. Higher reliability of each tube to tubesheet joint
   Uniform fusion reduces crack initiation points.

2. Stable NDT performance
   Consistent bead shape makes PT and leak tests predictable.

3. Better productivity without quality loss
   Automated orbital motion eliminates operator fatigue.

4. Lower rework rate
   A tuned tube to tubesheet orbital welding machine produces repeatable results shift after shift.

In our factory trials, optimized orbital welding tube to tubesheet parameters often reduce repair rates dramatically, especially in thick tube sheets used for high-pressure boilers.




Process Control Matters More Than Equipment Alone

Even the best automatic tube to tubesheet welding machine needs correct setup. Boiler welding requires careful control of:

• Tube projection length

• Hole clearance

• Pre-expansion when required

• Shielding gas flow

Only when fit-up matches welding parameters can the tube to tubesheet joint achieve full strength and sealing performance.

Automation ensures stability—but process discipline ensures success.


From Equipment Manufacturer to Boiler Fabricator

As a factory specializing in orbital systems, we design each tube to tubesheet orbital welding machine around real boiler production needs: compact heads for dense tube sheets, programmable welding sequences, and stable arc control for thick materials.

Because in industrial boiler manufacturing, quality is not measured by appearance—it’s measured by years of safe operation.

And behind every reliable boiler stands a perfectly executed tube to tubesheet joint, created again and again by a dependable automatic tube to tubesheet welding machine using precise orbital welding tube to tubesheet technology.
