If you weld pipes, you know that not all automatic circumference welding machine systems are created equal. Some are built for high-volume shops with perfect fit-up. Others are designed for field work where conditions are anything but perfect. Choosing the wrong circumferential seam welding setup can mean months of frustration, rework, and missed deadlines.

We’ve been building automated welding equipment since 1994. We’ve shipped to over fifty countries. And we’ve watched customers struggle because they didn’t ask the right questions before buying an automatic circumference welding machine.

Here’s what you need to know to pick the right circumferential butt weld solution for your pipe welding operation – without the marketing fluff.

Understand the Difference Between “Circumference” and “Seam”

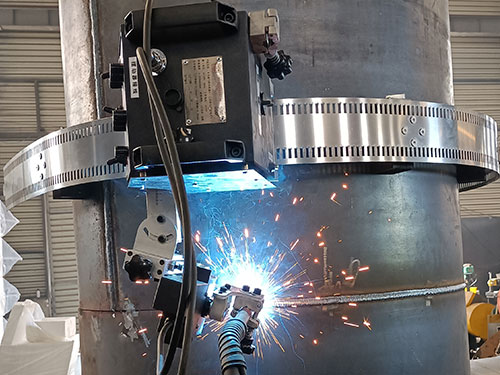

First, let’s clarify what an automatic circumference welding machine actually does. It joins pipes or tubes by rotating the welding head around the stationary workpiece – or by rotating the workpiece under a fixed head. The weld follows the circular circumferential seam welding path where two pipe ends meet.

A circumferential butt weld is the most common joint configuration for pipe welding. Two squarecut or beveled pipe ends are butted together, and the automatic circumference welding machine deposits weld metal around the entire circle.

Some suppliers confuse circumferential seam welding with longitudinal seam welding (used on tanks or vessels). They are not the same. A true automatic circumference welding machine for pipe welding must handle the geometry of a pipe joint – variable wall thickness, potential ovality, and the need for root penetration control.

When evaluating equipment, ask the supplier: “Is your circumferential seam welding system designed specifically for pipe, or is it adapted from a tank welder?” The answer will tell you a lot about their expertise in circumferential butt weld applications.

Match the Machine to Your Pipe Diameter and Wall Thickness

One of the most common mistakes buyers make is selecting an automatic circumference welding machine based on diameter alone. They see a range of “2 to 12 inches” and assume it will handle everything in between. But wall thickness changes everything.

A circumferential seam welding setup that works beautifully on 4-inch schedule 40 pipe (wall thickness ~0.237″) may struggle on the same diameter with schedule 10 (0.120″). Thin-wall stainless requires different heat management, gas coverage, and travel speed. Your automatic circumference welding machine must have programmable parameters that account for wall thickness, not just diameter.

We learned this from a customer who bought a circumferential butt weld system from a competitor. The machine worked fine on their heavy-wall carbon steel jobs. When they switched to thin-wall stainless for a pharmaceutical project, they burned through every root. The automatic circumference welding machine had no thin-wall mode.

Our systems – whether open head (KHGK) or closed head (KHGC) – store procedures by diameter *and* wall thickness. We’ve helped customers in over fifty countries develop circumferential seam welding parameters that transfer reliably between material types.

So before you commit, ask: “Does your automatic circumference welding machine allow me to program by wall thickness, or only by diameter?”

Open vs. Closed Head: Which Is Right for Circumferential Butt Weld Quality?

You’ll face a fundamental choice when buying an automatic circumference welding machine: open head or closed head.

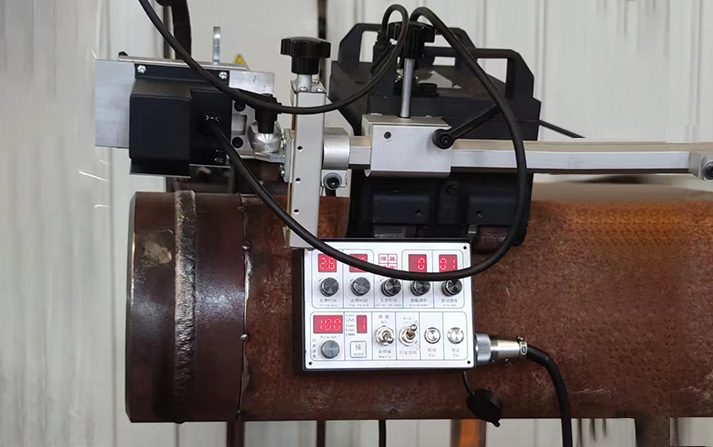

Open head designs clamp around the outside of the pipe. The weld zone is exposed to the surrounding air. This is fine for carbon steel and heavywall stainless (schedule 40 and above) where minor oxidation doesn’t compromise integrity. Open head circumferential seam welding is faster to set up and covers a wider diameter range.

Closed head designs seal the weld zone in a chamber filled with inert gas. This is essential for thinwall stainless (schedule 10 and below) and highpurity applications like pharmaceutical or semiconductor lines. A closed-head automatic circumference welding machine prevents the oxidation that ruins a circumferential butt weld on sanitary tubing.

We’ve seen shops try to use an open head for sanitary work. The circumferential seam welding process produced beautiful beads on the outside. But inside, the root was blue or grey – a sign of oxidation that compromises corrosion resistance. They eventually switched to a closed-head automatic circumference welding machine and cut their rejection rate from 15% to under 2%.

When you evaluate circumferential butt weld systems, be honest about your material and wall thickness. If you weld thin-wall stainless, you need a closed head. If you weld thick-wall carbon steel, an open head is usually sufficient – and more affordable.

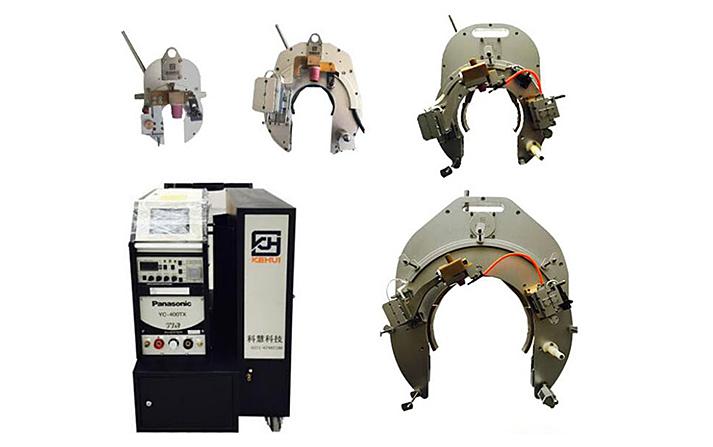

We offer both. Our KHGK open head and KHGC closed head are purpose-built for their respective applications. And our KH-315A 3-in-1 system gives you both heads on one power source.

How Does the Automatic Circumference Welding Machine Handle Fit-Up Variation?

What Training and Support Come With the Automatic Circumference Welding Machine?

Real-World Example: Choosing the Right Automatic Circumference Welding Machine

The Bottom Line
