Automatic welding robot workstation for field seeder
Farmland seeding machine automatic welding workstation, using the single transfer form, the jig is a half ring distribution, as a flexible, reliable, universal flexible manufacturing unit, containing welding robot system (manipulator and robot controller), the system controller, displacement reverse mechanism and welding torch unit (welding torch and transformer) and welding auxiliary equipment.It can be applied to different welding tasks by simple robot program adjustment, working parameters and welding gun change.

Application:

Automatic welding workstation of farmland seeder robot has been widely used in automobile, motorcycle, civil construction, home appliance, 3C, railway locomotive and construction machinery manufacturing industry.

Parameter:

Power requirement: three-phase AC 380±10% Rated power: 50kVA Electrode travel of welding tongs: 120mm Pressure of pneumatic system (MPa) : 0.6
Advantage

1. High degree of automation, strong flexibility, safety and reliability

Can install various positioning workpiece or clamping mechanism, have linkage control interface and corresponding self-protection function, centralized control and mutual coordination work.It can adjust quickly according to the change of manufacturing task and production environment and adapt to all kinds of production tasks.


2. Carry welding tongs with inner transformer, which is efficient and stable in welding quality

According to the frame size of the top skin of each vehicle, the common locating point was found.The clamping unit is switched with the tooling because of the big difference of vehicle types.Positioning precision is high (± 0.25 MM), to ensure welding quality, spot welding speed has matched the production line, at the same time according to full reliability.


3. Adjustable welding speed, stable quality and beautiful welding seam

The operation speed of welding can be adjusted, with good structural stiffness, effectively ensuring fast welding. The advantage of fast servo rotary speed is more conducive to cross welding and reduce the welding deformation of workpiece.The multi-point positioning of section distance can be completed quickly, and the 24-hour continuous "unmanned production" can be realized.


4. Small installation area and large working space

Improve equipment utilization, reduce equipment quantity and workshop floor space.Be able to arrange the processing of required parts timely according to the welding operation, so as to reduce the inventory of blank and finished products, thus reducing the corresponding funds, sites and so on.


Structure

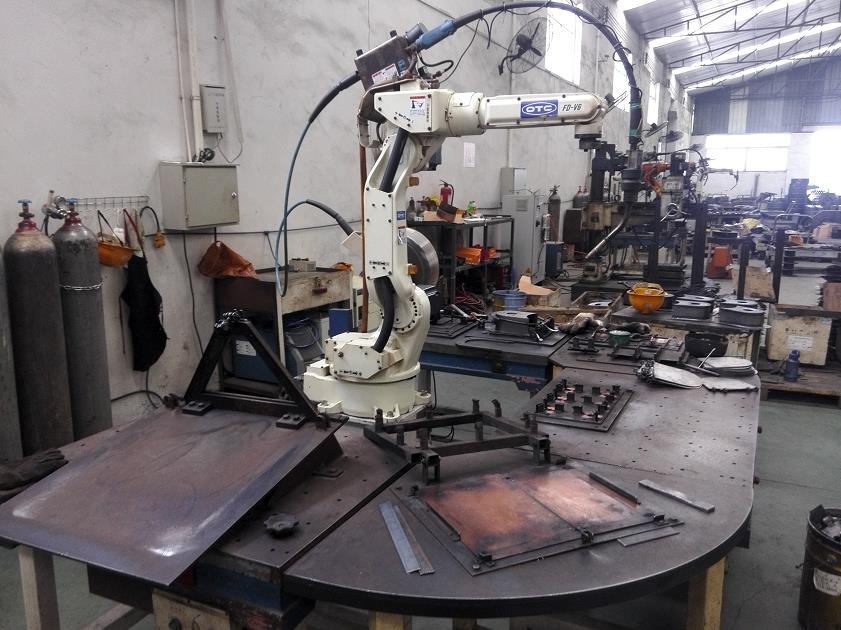

The robot workstation of the field seeder is equipped with a single operating station, and a set of welding fixtures is fixed. The robot can complete the welding automatically.There are counter gratings at the loading and unloading stations to ensure the safety of operators. The robot will never enter this area when the workers are loading and unloading the parts. Meanwhile, when the robot is welding the workpiece on this surface, if the personnel enter this area, the robot will immediately stop running.
Parameter
power 3 phase current 380±10%
rated power 50kVA
Secondary maximum short circuit current 15000A(5% loads)
The electrode is most pressurized     3000N
Electrode travel of welding tongs 120mm
working altitude 850mm
robotic system KR150-2
